IMPRESSIVE OFFICE BUILDING


IMPRESSIVE OFFICE BUILDING


J Harvey Ltd ordered this huge commercial building as we were starting to find normality again following the Covid 19 pandemic. With amazing open vaulted first floor ceilings - who wouldn't want to work in such a stunning environment.

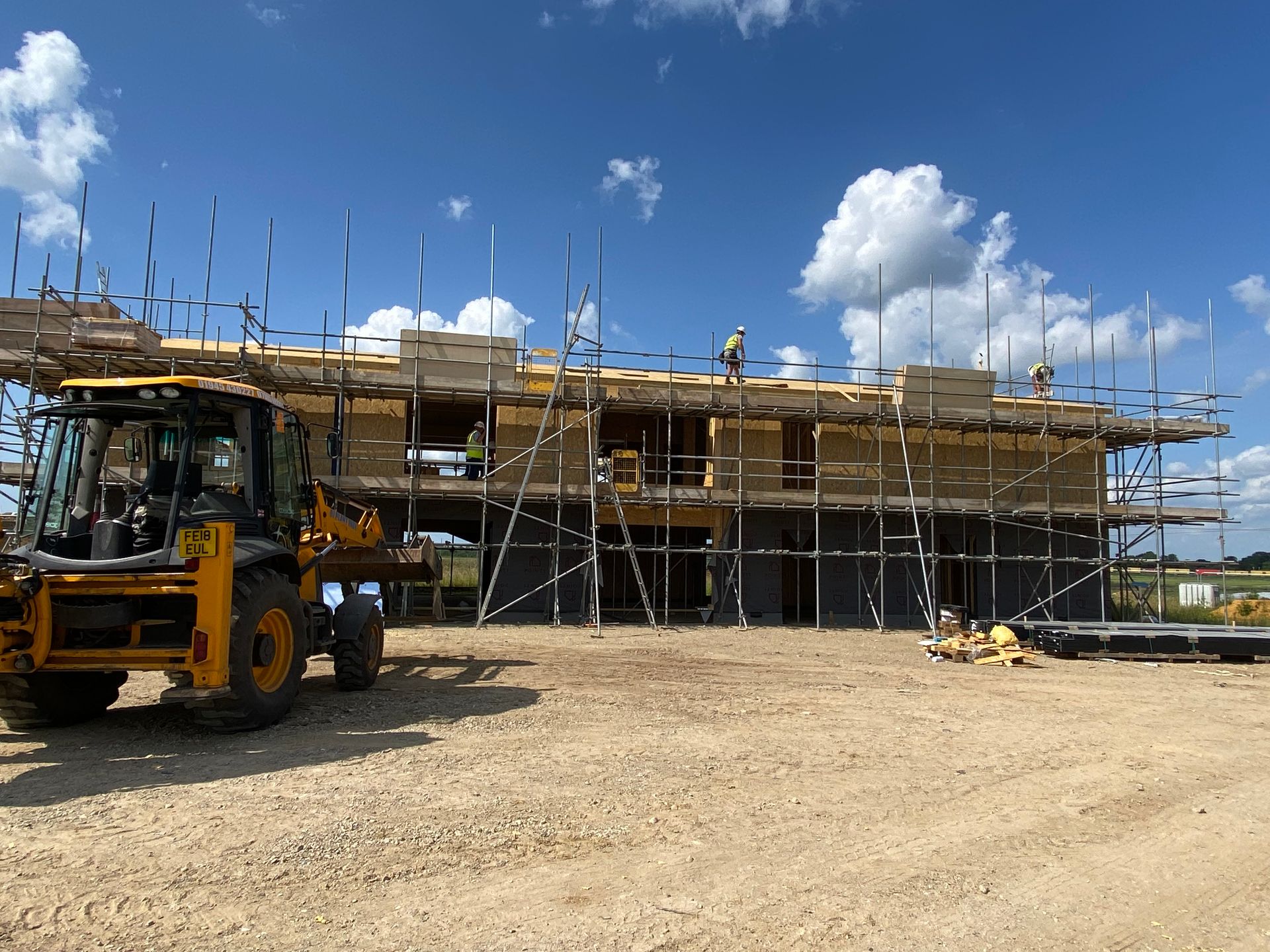

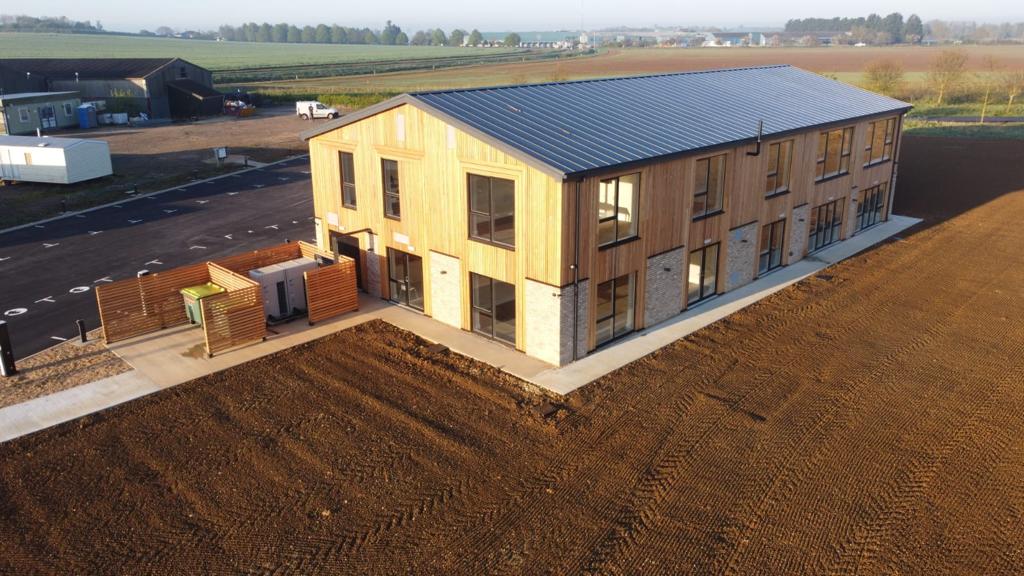

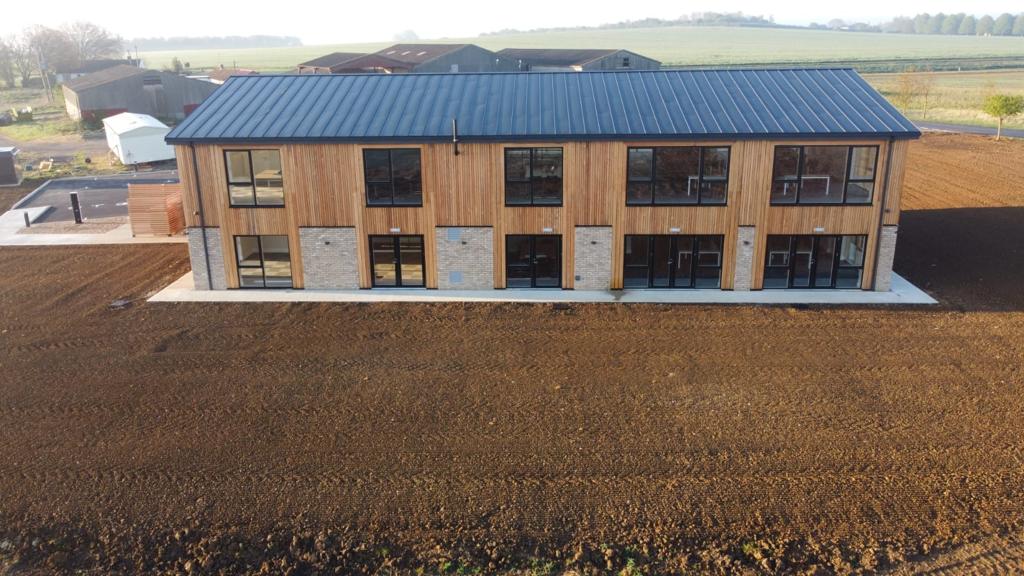

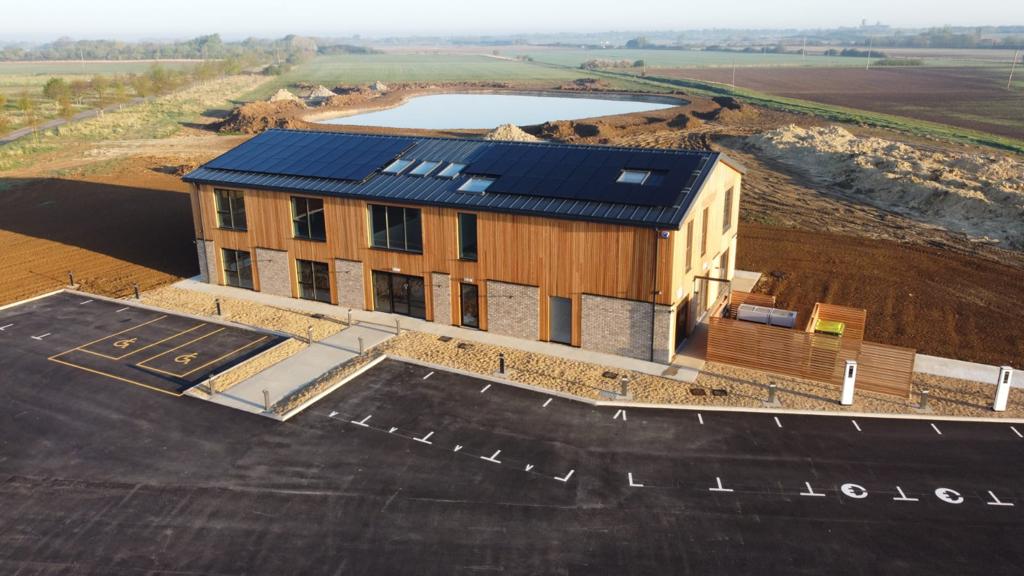

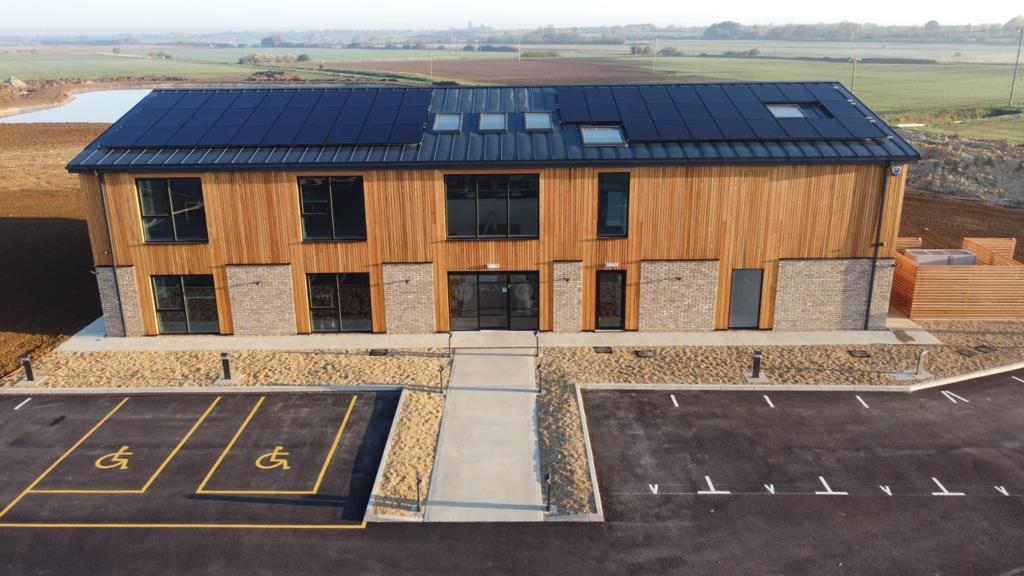

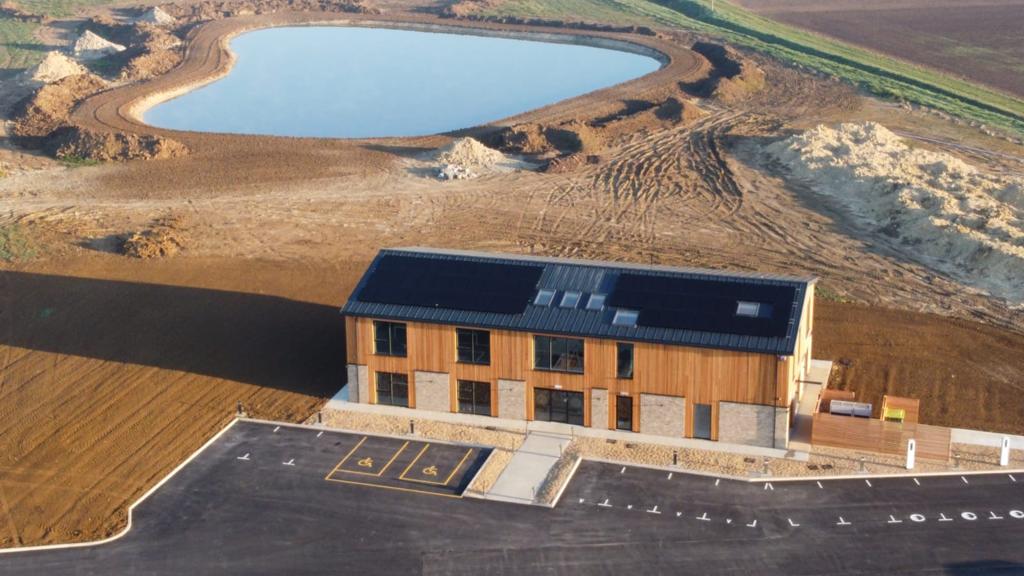

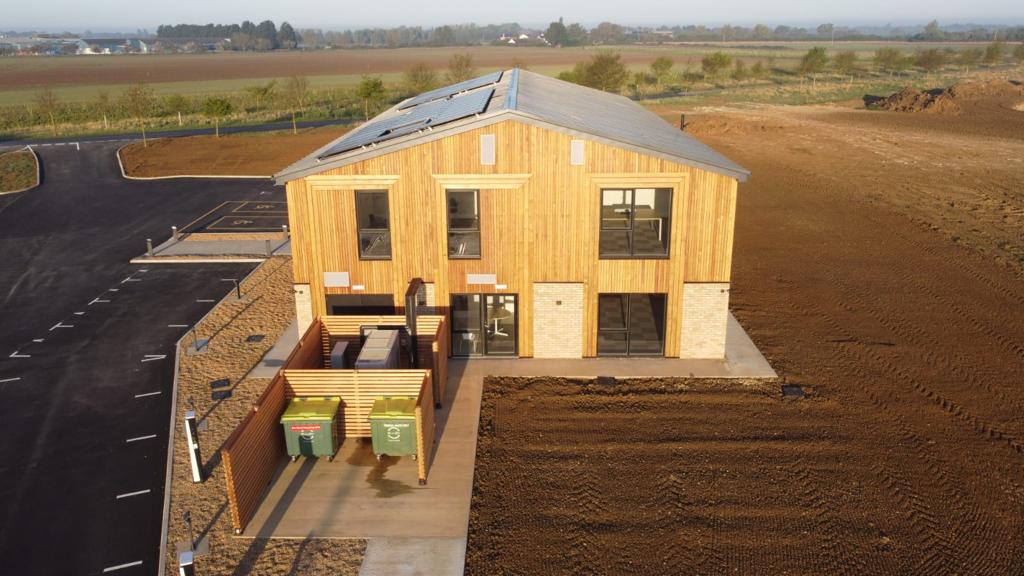

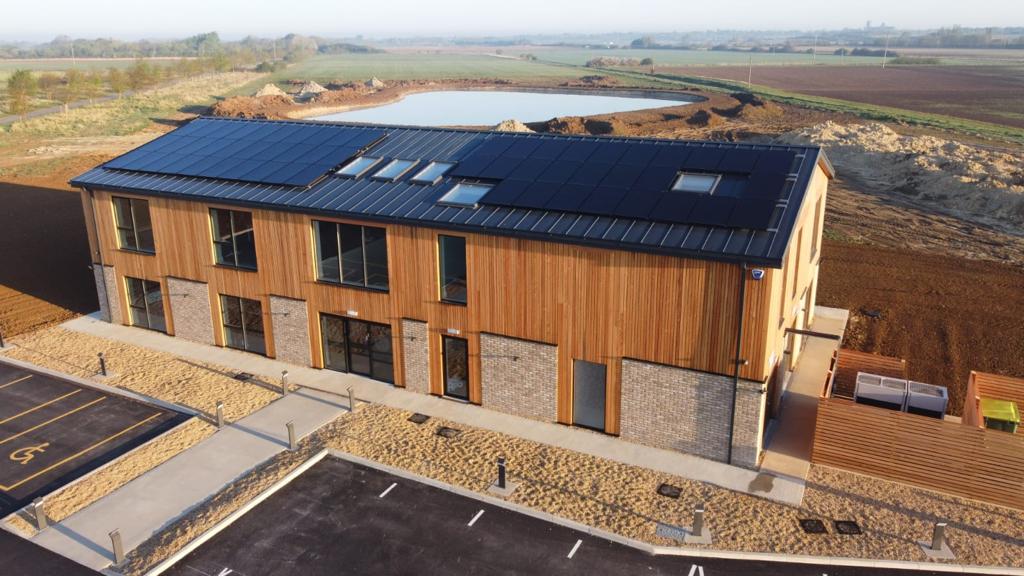

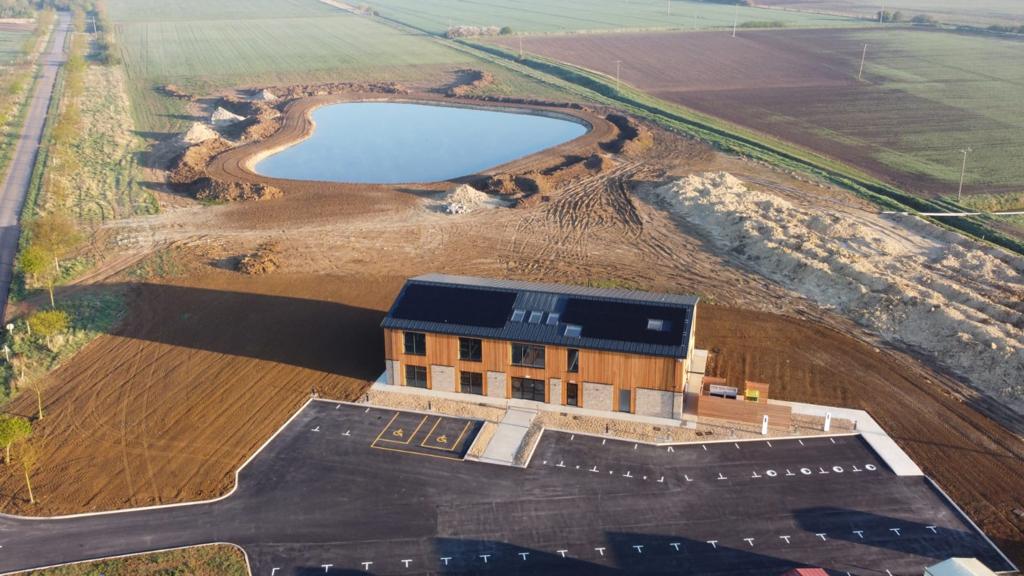

We are still in awe of the sheer scale of this commercial office building consisting of a 2-storey office superstructure, designed, manufactured and installed by POINT1 Building Systems in conjunction with principle contractor, J Harvey Ltd. (www.harv.co.uk)

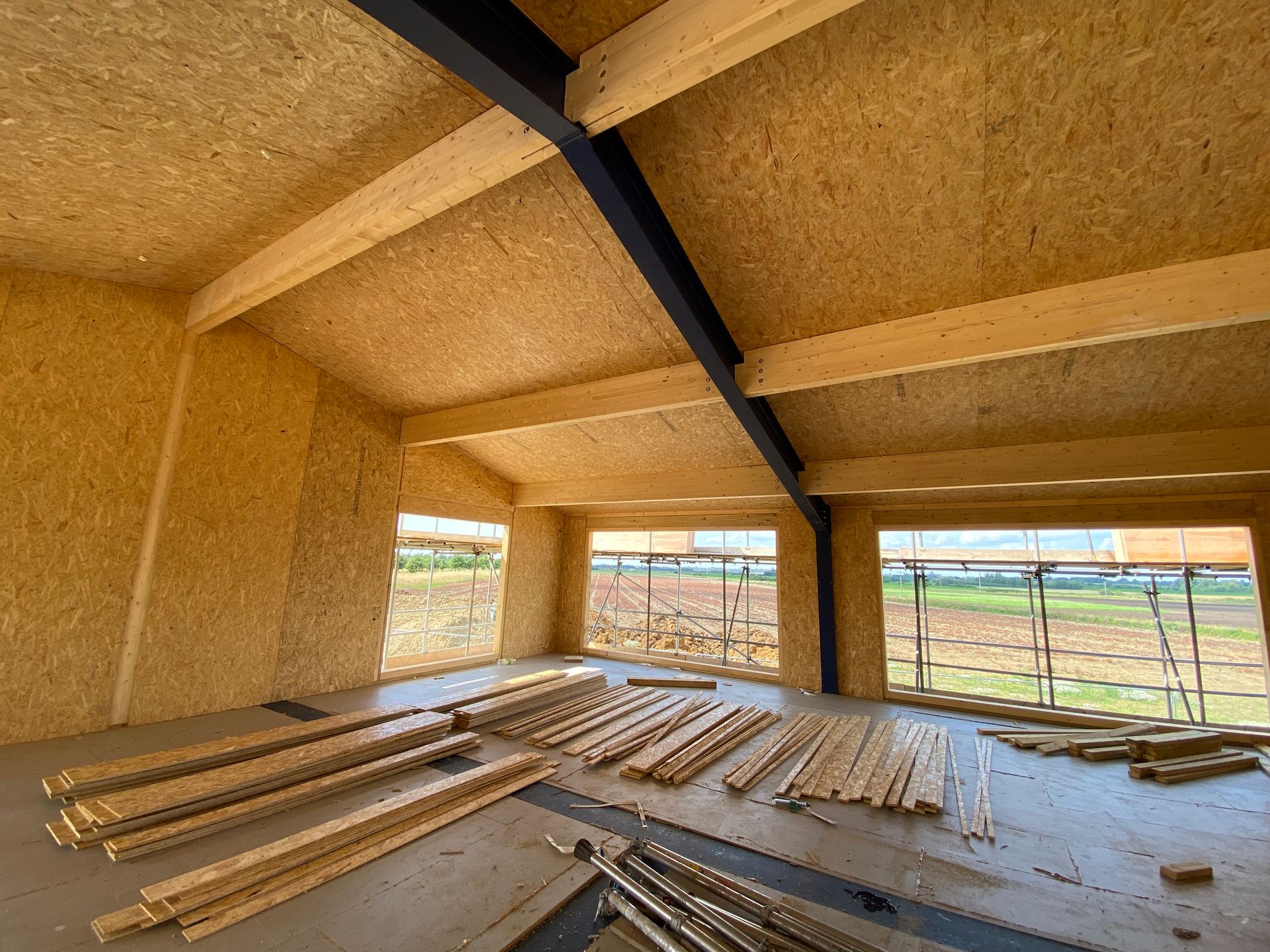

Our images show the stunning first floor vaulted ceilings during the construction phase - creating luxurious and spacious offices.

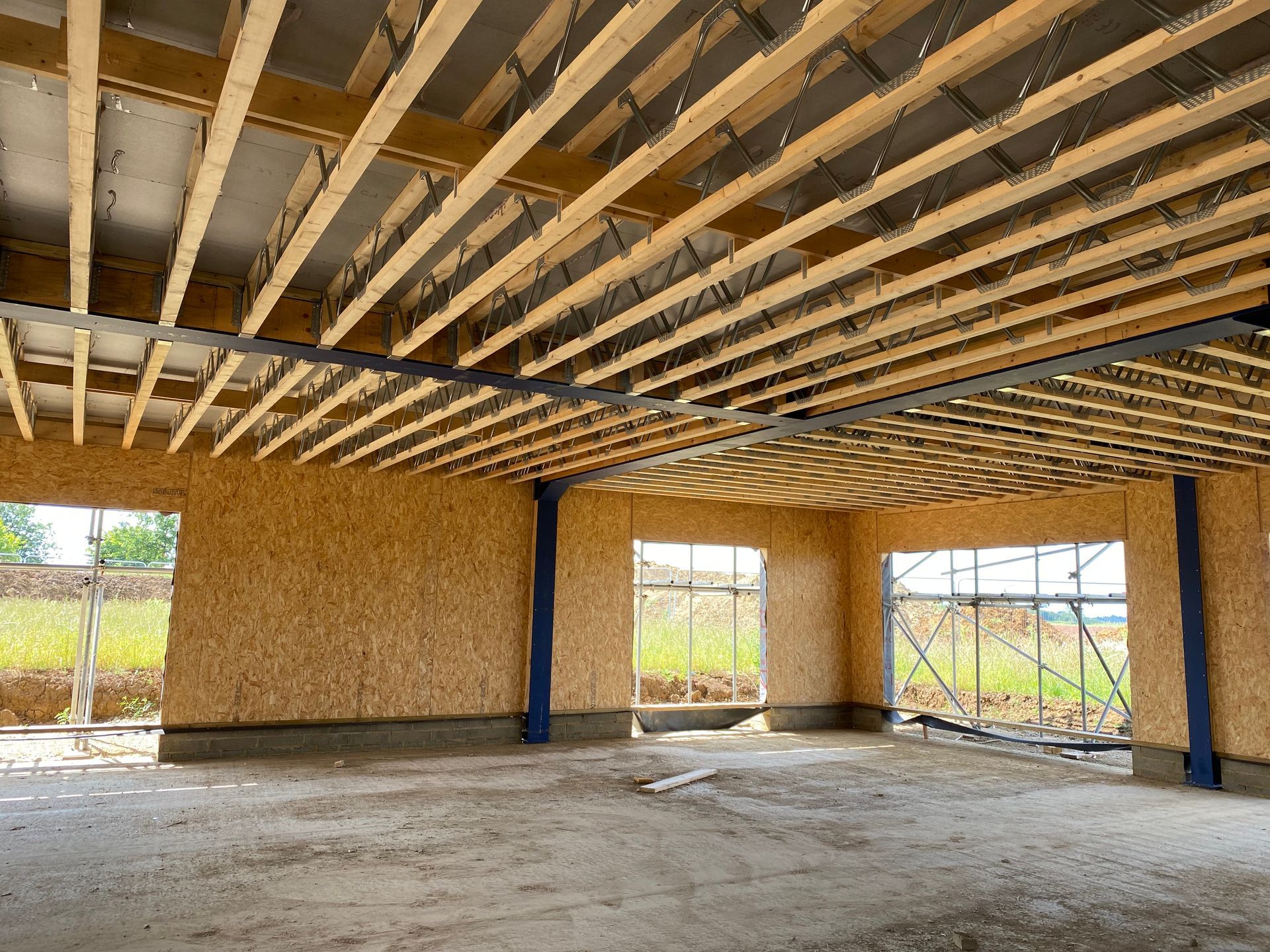

Another shot taken at Ground floor - looks up at a sea of posi joists forming the upper floor.  The external walls were constructed using Kingspan TEK Structural Insulated Panel System (SIPS), which forms a high performance, thermal wall and roof envelope.


Once the SIPs kit was delivered, the shell of this office structure, was erected far quicker than with traditional construction methods, saving our clients time and resources. So, if you’ve made the choice to go down this route for your new office project, whatever the size, contact us to find out how to make the most of this innovative system enquiries@point1buildingsystems.com


SPECIFICATION REF: P11310




  • External Walls - 172mm Kingspan TEK (SIPS) - 0.17  W/m².k
  • Roof - 172mm Kingspan TEK (SIPS) - 0.16  W/m².k
  • Internal Walls - C16 38mm x 89mm timber frame
  • Roof support - Whitewood Glulam beams
  • Structural Steel Portal Frames
  • 240mm Metal Web Joists c/w with 22mm egger protect board
  • Point1 WRVBM high performance breather membrane - stapled (wall and roof)
  • 25mm x 50mm vertical battens (400 centres)
  • Glidevale Protect VC Foil tape
  • External Roof Slope 45mm x 45mm Battens & 18mm Premium H/W Ply
  • External Roof Slope Point1 WRVBM Breather Membrane - stapled


Location


Ely, Cambridgeshire 2021

Photography



Point1 & Clients own photographs
