CHARMING COTSWOLD EXTENSION

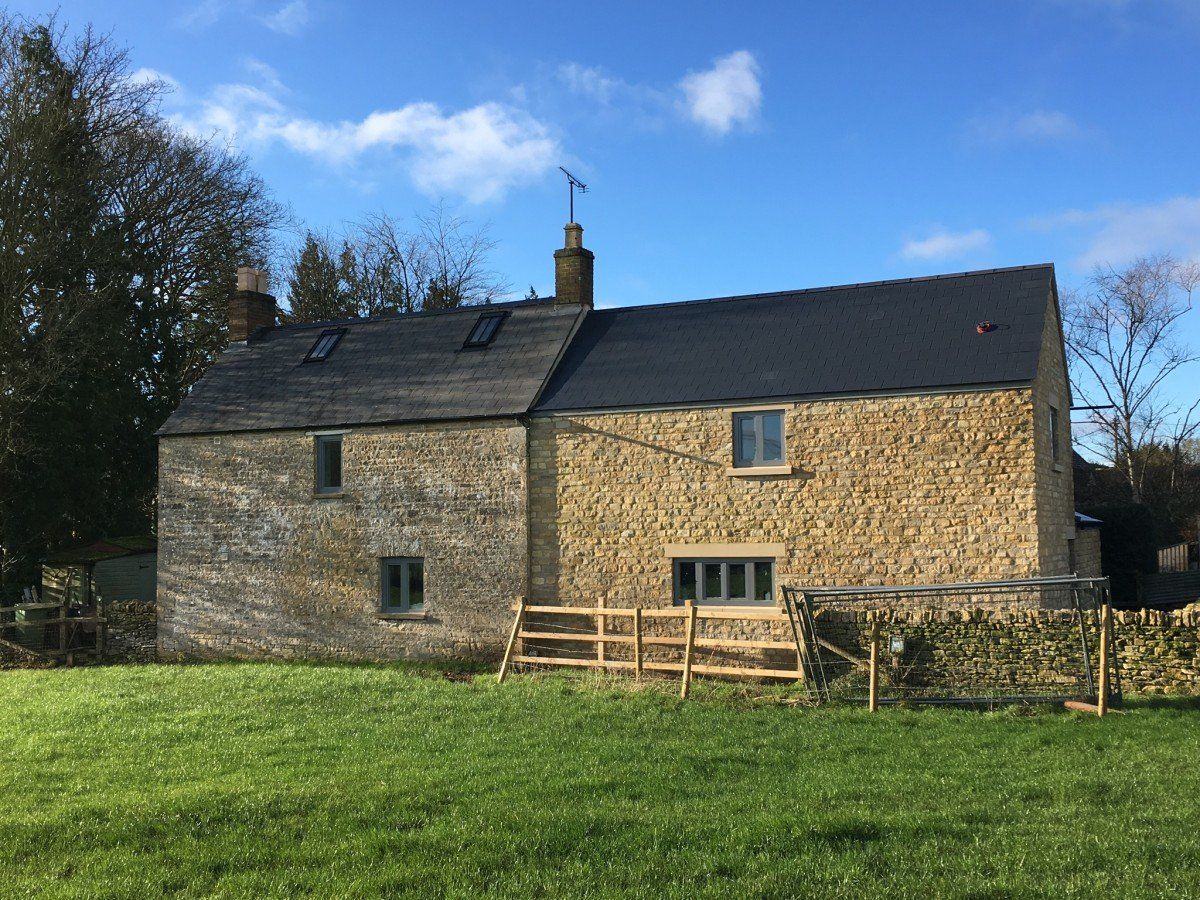

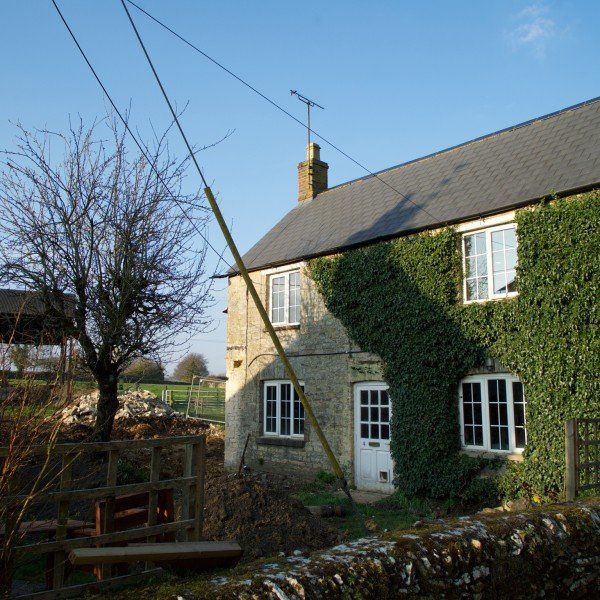

Tom and Rowena's vision was to transform their bijou cottage into a warm spacious home for a growing family, while keeping its timeless character.

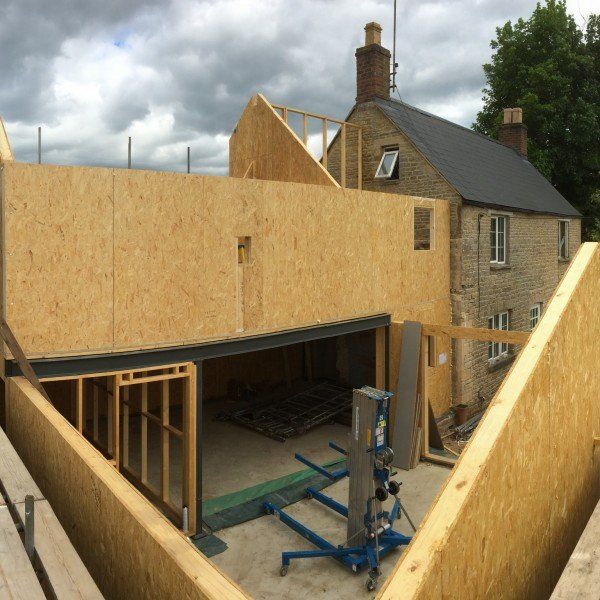

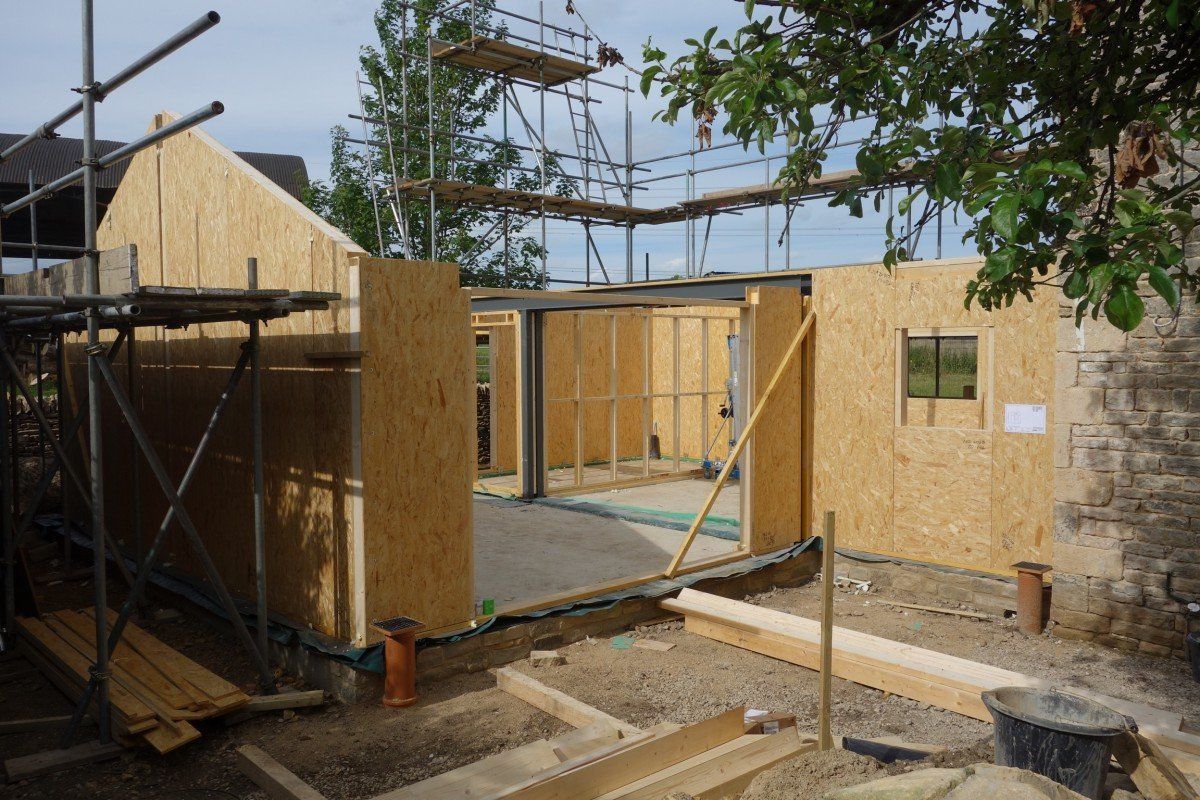

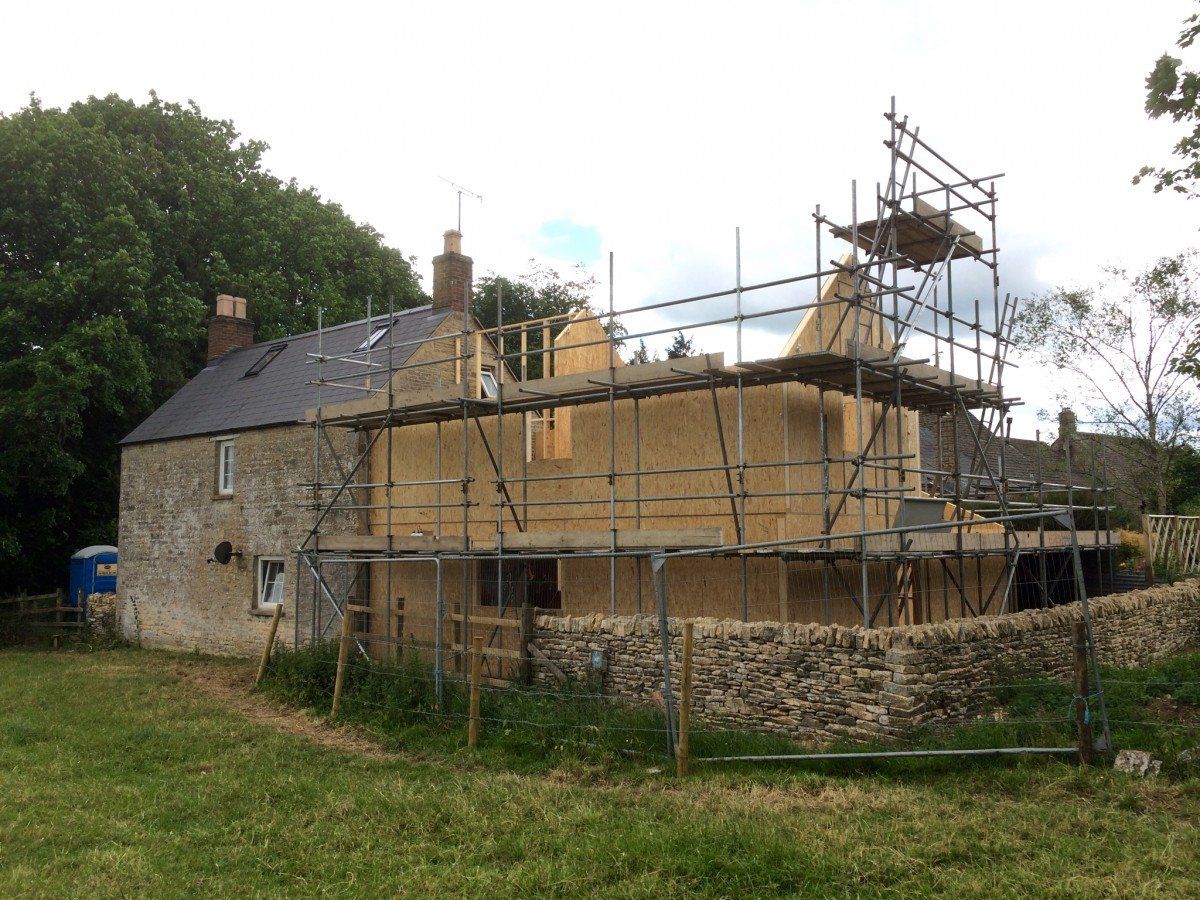

Point1 designed, engineered and installed the Kingspan TEK 142 envelope as well as internal walls, and the supporting glulam beams and steel structure.

SPECIFICATION REF: P10252




  • External Walls - 142mm Kingspan TEK (SIPS) - 0.17  W/m².k
  • Roof - 142mm Kingspan TEK (SIPS) - 0.20  W/m².k

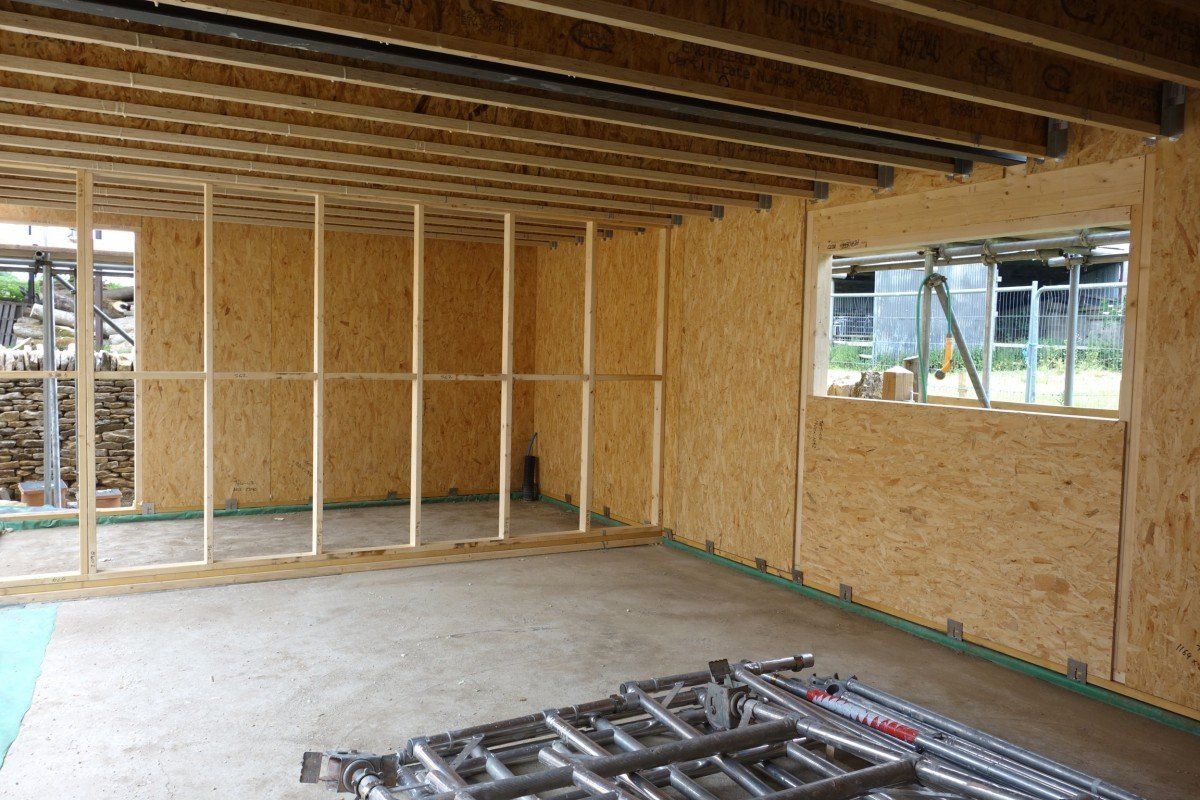

  • Internal Walls - C16 38mm x 89mm timber frame
  • Roof support - Whitewood Glulam beams

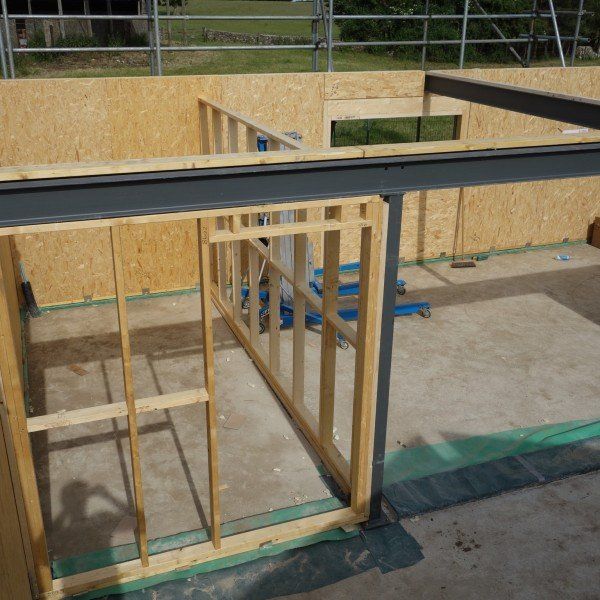

  • Structural Steel Portal Frame
  • Engineered I joists with 22mm egger protect decking
  • Wall Membrane - TF200 Thermo reflective high performance breather membrane

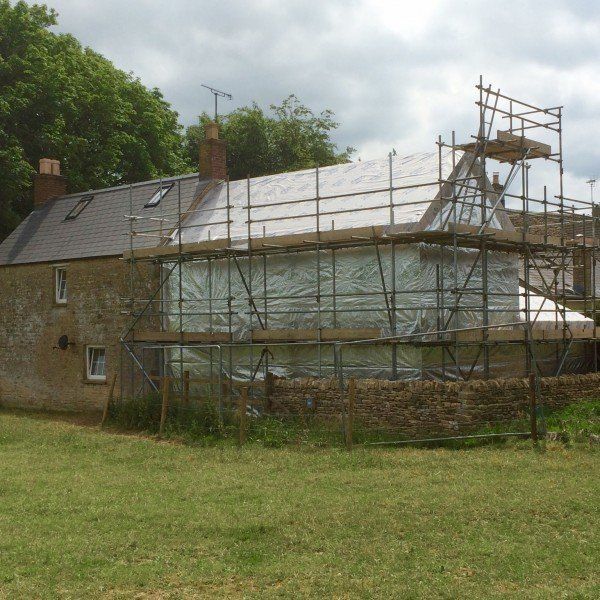

  • Roof Membrane - Standard Kingspan Nilvent - stapled
  • Wall ties - Supplied (not fitted) BTS50 SCR S/s SIPS Wall Ties
  • Heavy masonry support beam



Location


Woodmancote, Cirencester 2015

Photography



Point1 & Clients own photographs
